2D Wire Bending Machine
2D Wire Bending Machine

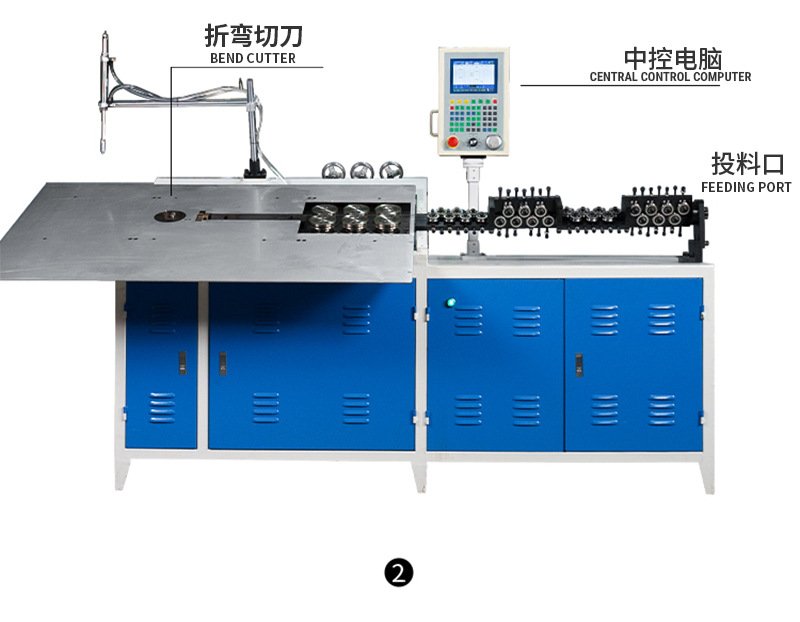

The AYPEEN 2D Wire Bending Machine is designed for flat wire forming applications. It integrates wire straightening, cutting, bending and push-bending in one process, helping manufacturers produce hooks, frames, baskets, shelves, display racks and hardware wire products with better efficiency and repeatability.
Integrated ProcessingStraightening, feeding, cutting and 2D bending in one automatic production flow.
Flexible ProductionNo mold opening is required for many flat wire shapes, suitable for small batches and batch production.
Optional ModulesChamfering, butt welding, argon arc welding and medium-frequency welding modules are available.
Applications
Suitable for gardening products, lighting frames, kitchen and bathroom hardware, wine racks, iron art products, shelves, wire baskets, display racks, home hardware and other flat wire components.
Main Features
- Integrated straightening, cutting, interference-free bending and push-bending functions for one-time forming.
- CNC touch screen control makes product changeover and parameter setting faster.
- Covers different wire diameter ranges by model, including round wire, flat wire and square wire.
- Can be customized with grippers, chamfering function and welding function according to product requirements.
- Combines 2D bending with welding processes to reduce manual handling and secondary positioning.
- Improves repeatability and helps reduce manual welding and forming errors.
Models and Technical Parameters
| 3. Technical Specifications / 技术规格 | |||
|---|---|---|---|
| 型号/Model | IGWB2D-6A | IGWB2D-8A | IGWB2D-10A/12A |
| 可调线材范围/Adjustable wire range | 2.5-6.0mm(铁线标准) 2.5-6.0mm (iron wire standard) | 3.0-8.0mm(铁线标准) 3.0-8.0mm (iron wire standard) | 4.0-12.0mm(铁线标准) 4.0-12.0mm (iron wire standard) |
| 调直轮数/Straightening wheels quantities | 22组(采用国际CR12制作) 22 groups(made by Cr12 with national standard) | 22组(采用国际CR12制作) 22 groups(made by Cr12 with national standard) | 28组(采用国际CR12制作) 22 groups(made by Cr12 with national standard) |
| 折弯模具/Bending molds | 用SKD11/51制造，硬度62 Made of SKD11/51 with hardness 62 | ||
| 送线轮数/Wire Feeding Roller No | 3组(送线轮采用国标Cr12,精抛光加工热处理硬度达硬度达58°耐磨损) 3 groups (made of Cr12,fine polishing heat treat hardness reaches 58°,with high wear resistance) | 3组(送线轮采用国标Cr12,精抛光加工热处理硬度达硬度达58°耐磨损) 3 groups (made of Cr12,fine polishing heat treat hardness reaches 58°,with high wear resistance) | 4组(送线轮采用国标Cr12,精抛光加工热处理硬度达硬度达58°耐磨损) 3 groups (made of Cr12,fine polishing heat treat hardness reaches 58°,with high wear resistance) |
| 轴数/Axis quantities | 3轴/3 axis | 3轴/3 axis | 3轴/3 axis |
| 伺服电机总功率/Wire feed servo motor | 4.8KW | 4.8KW(大扭力)/4.8KW (large torque) | 6.9KW |
| 送线伺服电机功率/Wire feeding servo motor power | 2.3KW | 2.3KW带减速/2.3KW with reducer | 2.3KW带减速/2.3KW with reducer |
| 折弯伺服电机功率/Bending servo motor power | 1.5KW | 1.5KW带减速with reducer | 2.3KW带减速/2.3KW with reducer |
| 送切刀伺服功率/Send cutter servo power | 1.0KW | 1.0KW | 2.3KW带减速/2.3KW with reducer |
| 切刀切力/Cutter cutting force | φ6铁线(软线)/φ6 iron wire (soft wire) | φ8铁线(软线)/ φ8 iron wire (soft wire) | φ10、Φ12铁线(软线)/φ10、φ12 iron wire (soft wire |
| 外观尺寸/Machine dimension | 2800*850*1500 | 2800*850*1500 | 3150*785*1800 |
| 机器重量/Machine weight | 1100KG | 1200KG | 1500KG |
| 送线速度/Wire feeding speed | 最快100M/min /Max 100m/min | Max 24m/min | 最快18M/min /Max 18m/min |
| 最大折弯速度/Maximum Bending Speed | 300转/min角度±180 /300 r/min,Angle±180. | 300转/min角度±180 /300 r/min,Angle±180. | 50转/min角度±360°/50 r/min,Angle±360. |
| 储存/Data Storage No | 1000组数据，300个动作为1组10000 groups of data,each group has 300pcs of actions | ||
| 折弯精度/Bending precision | ±0.5° | ±0.5 ° | ±0.5° |
| 送线精度/Wire Feeding Precision | ±0.5mm | ±0.5mm | ±0.5mm |
| 效率/Production Speed | 20-25/只/min(以20*20方框为样) 20.25pcs/min(take square 200*200mm as an example) | 12-15/只/min(以20*20方框为样) 20.25pcs/min(take square 200*200mm as an example) | 20-25/只/min(以20*20方框为样) 20.25pcs/min(take square 200*200mm as an example) |
| 调直线材/Applicable wire | 圆线、扁线、方线、(适用任何材质线材) Round wire,flat wire,square wire (applicable to any material wire) | ||
| 动作方向/Action Direction | 内模-下移动/上移 外模-下移动/上移360°顺逆方向转 Inner Mold move lower and upper;Outer mold move lower and upper.Directions are 360°clockwise and counterclockwise | ||
| 电气电压/Power supply | 3-phase 4-wire + ground 380V, 50/60Hz （or custom） | 3-phase 4-wire + ground 380V, 50/60Hz （or custom） | 3-phase 4-wire + ground 380V, 50/60Hz （or custom） |
| 设备结构/Structure | Straightening + feeding + cutting + bending | Straightening + feeding + cutting + bending | Straightening + feeding + cutting + bending |
| 加倒角功能： | |||
| 倒角模块 Chamfering | 倒角电机功率1.5KW / Chamering motor power 1.5KW 功能；带升降功能，旋转倒角功能 / F1inction:Lifing,rotating and chamfering 具有单独启停功能 / Separate start and stop operation 倒角范围：需要通过调整倒角刀位置来倒角效果 / Chamfering range:Adjust the chamfering knife position to realize chamfering effect. | ||
| 加焊接功能：2D Curved Line Butt Welding Equipment / 弯线对焊设备 应用场景：适合需要折弯后闭合焊接的平面框线制品。 | |||
| 型号/Model | IGWB2D-6B | IGWB2D-8B | IGWB2D-10B/12B |
| 焊接模块 Welding module | 机械手夹钳2套 2 sets of robot clamps | 机械手夹钳2套 2 sets of robot clamps | 机械手夹钳2套 2 sets of robot clamps |
| 40KW 焊接变压器 | 63KW 焊接变压器 | 80KW 焊接变压器 | |
| 型号/Model | IGWB2D-6C | IGWB2D-8C | IGWB2D-10C/12C |
| 氩弧焊接模块 Argon arc welding module | 机械手夹钳2套 2 sets of robot clamps | 机械手夹钳2套 2 sets of robot clamps | 机械手夹钳2套 2 sets of robot clamps |
| 40KW 焊接变压器 | 63KW 焊接变压器 | 80KW 焊接变压器 | |
| 型号/Model | IGWB2D-6D | IGWB2D-8D | IGWB2D-10D/12D |
| 中频焊接模块 Medium-frequency welding module | 机械手夹钳2套 2 sets of robot clamps | 机械手夹钳2套 2 sets of robot clamps | 机械手夹钳2套 2 sets of robot clamps |
| 300A 氩弧焊机 *2/3 300A Argon Arc Welding Machine * 2/3 | |||
Need a matched solution?
Send your wire diameter, material, product drawing or sample photo to AYPEEN. Our engineers can recommend the suitable 2D wire bending machine model and optional modules.
