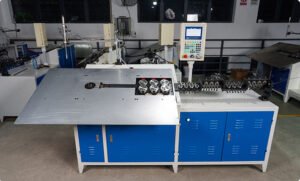

2D Wire Bending Machine
| Model | IGWB2D-6A |
| Adjustable wire range | 2.5–6.0 mm iron wire standard |
| Straightening wheels | 22 groups, made by Cr12 with national standard |
| Bending molds | Made of SKD11 / 51 with hardness 62 |
| Wire feeding roller groups | 3 groups, Cr12, fine polishing and heat treatment, hardness 58°, high wear resistance |
| Axis quantity | 3 axis |
| Total servo motor power | 4.8 kW |
| Wire feeding servo motor power | 2.3 kW with reducer |
| Bending servo motor power | 1.5 kW with reducer |
| Send cutter servo power | 1.0 kW |
| Cutter cutting force | Φ6 iron wire (soft wire) |
| Machine dimension | 2800 × 850 × 1500 mm |
| Machine weight | 1100 kg |
| Wire feeding speed | Max. 100 m/min |
| Maximum bending speed | 300 r/min, angle ±180° |
| Data storage | 1000 groups of data; each group has 300 actions |
| Bending precision | ±0.5° |
| Wire feeding precision | ±0.5 mm |
| Production speed | 20–25 pcs/min, based on 200 × 200 mm square frame sample |
| Applicable wire | Round wire, flat wire and square wire; applicable to various wire materials |
| Power supply | 3-phase 4-wire + ground, 380V, 50/60Hz, or customized |
| Structure | Straightening + feeding + cutting + bending |
| Model | IGWB2D-8A |
| Adjustable wire range | 3.0–8.0 mm iron wire standard |
| Straightening wheels | 22 groups, made by Cr12 with national standard |
| Bending molds | Made of SKD11 / 51 with hardness 62 |
| Wire feeding roller groups | 3 groups, Cr12, fine polishing and heat treatment, hardness 58°, high wear resistance |
| Axis quantity | 3 axis |
| Total servo motor power | 4.8 kW, large torque |
| Wire feeding servo motor power | 2.3 kW with reducer |
| Bending servo motor power | 1.5 kW with reducer |
| Send cutter servo power | 1.0 kW |
| Cutter cutting force | Φ8 iron wire (soft wire) |
| Machine dimension | 2800 × 850 × 1500 mm |
| Machine weight | 1200 kg |
| Wire feeding speed | Max. 24 m/min |
| Maximum bending speed | 300 r/min, angle ±180° |
| Data storage | 1000 groups of data; each group has 300 actions |
| Bending precision | ±0.5° |
| Wire feeding precision | ±0.5 mm |
| Production speed | 12–15 pcs/min, based on 200 × 200 mm square frame sample |
| Applicable wire | Round wire, flat wire and square wire; applicable to various wire materials |
| Power supply | 3-phase 4-wire + ground, 380V, 50/60Hz, or customized |
| Structure | Straightening + feeding + cutting + bending |
| Model | IGWB2D-10A / IGWB2D-12A |
| Adjustable wire range | 4.0–12.0 mm iron wire standard |
| Straightening wheels | 28 groups, made by Cr12 with national standard |
| Bending molds | Made of SKD11 / 51 with hardness 62 |
| Wire feeding roller groups | 4 groups, Cr12, fine polishing and heat treatment, hardness 58°, high wear resistance |
| Axis quantity | 3 axis |
| Total servo motor power | 6.9 kW |
| Wire feeding servo motor power | 2.3 kW with reducer |
| Bending servo motor power | 2.3 kW with reducer |
| Send cutter servo power | 2.3 kW with reducer |
| Cutter cutting force | Φ10 / Φ12 iron wire (soft wire) |
| Machine dimension | 3150 × 785 × 1800 mm |
| Machine weight | 1500 kg |
| Wire feeding speed | Max. 18 m/min |
| Maximum bending speed | 50 r/min, angle ±360° |
| Data storage | 1000 groups of data; each group has 300 actions |
| Bending precision | ±0.5° |
| Wire feeding precision | ±0.5 mm |
| Production speed | 20–25 pcs/min, based on 200 × 200 mm square frame sample |
| Applicable wire | Round wire, flat wire and square wire; applicable to various wire materials |
| Power supply | 3-phase 4-wire + ground, 380V, 50/60Hz, or customized |
| Structure | Straightening + feeding + cutting + bending |
| Chamfering module | Chamfering motor power 1.5 kW. Functions include lifting, rotating and chamfering. Separate start / stop operation. Chamfering effect is adjusted by changing the chamfering knife position. |
| 2D curved line butt welding equipment | For flat frame wire products that need closed-loop welding after bending. |
| IGWB2D-6B / 8B / 10B / 12B | Butt welding module with 2 sets of robot clamps; welding transformer options: 40 kW, 63 kW, 80 kW. |
| IGWB2D-6C / 8C / 10C / 12C | Argon arc welding module with 2 sets of robot clamps; welding transformer options: 40 kW, 63 kW, 80 kW. |
| IGWB2D-6D / 8D / 10D / 12D | Medium-frequency welding module; 300A argon arc welding machine × 2/3. |
2D Wire Bending Machine Overview
The 2D wire bending machine is designed for automatic straightening, feeding, cutting and bending of flat 2D wire products. It is suitable for factories that need stable production of hooks, frames, handles, mesh accessories, hardware parts and customized wire forms.
With CNC control and servo-driven feeding / bending / cutting systems, the machine can help reduce manual forming work, improve dimensional consistency and support fast product changeover for different wire shapes.
Integrated forming processStraightening, feeding, cutting and bending are completed in one automatic workflow.
Stable servo controlServo motors support repeatable wire feeding, bending angle control and production consistency.
Flexible wire applicationsWorks with round wire, flat wire and square wire for different product types.
Durable wear partsCr12 rollers and SKD11 / 51 bending molds are used for high wear resistance.
Program storageUp to 1000 data groups can be stored for repeated production tasks.
Optional modulesChamfering, butt welding, argon arc welding and medium-frequency welding modules are available.
Applications
This machine is commonly used in metal wire product factories, hardware workshops, kitchenware and household product manufacturing, display rack production, construction accessory production and custom wire forming businesses.
- Wire hooks and S-hooks
- Metal frames and square frames
- Bucket handles and tray handles
- Door handles and rack hooks
- Kitchenware wire parts
- Lighting and ceiling accessories
- Wire mesh auxiliary parts
- Customized flat 2D wire products
Core Components

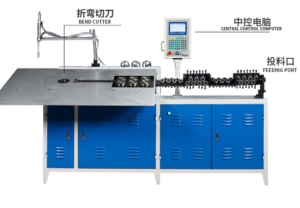

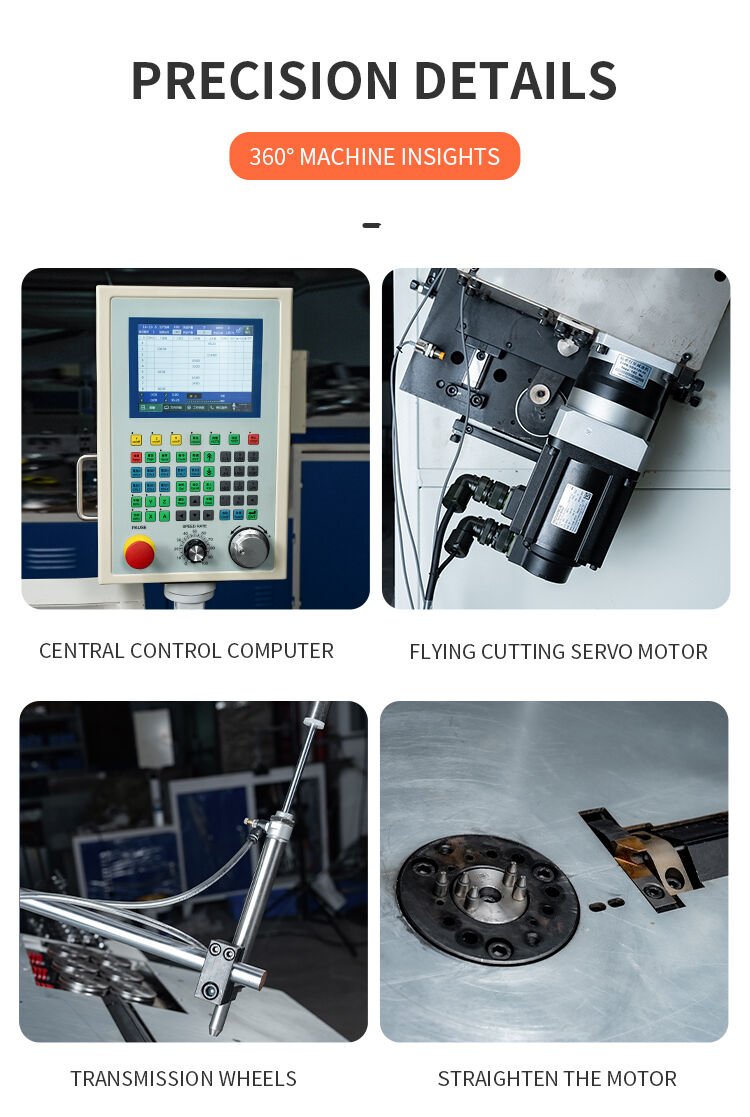

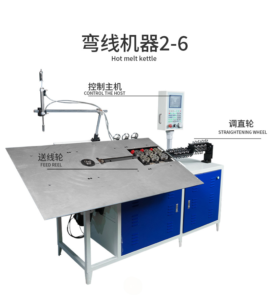

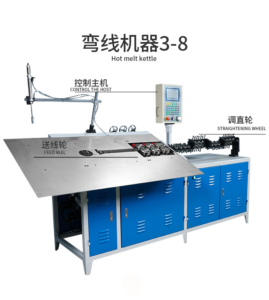

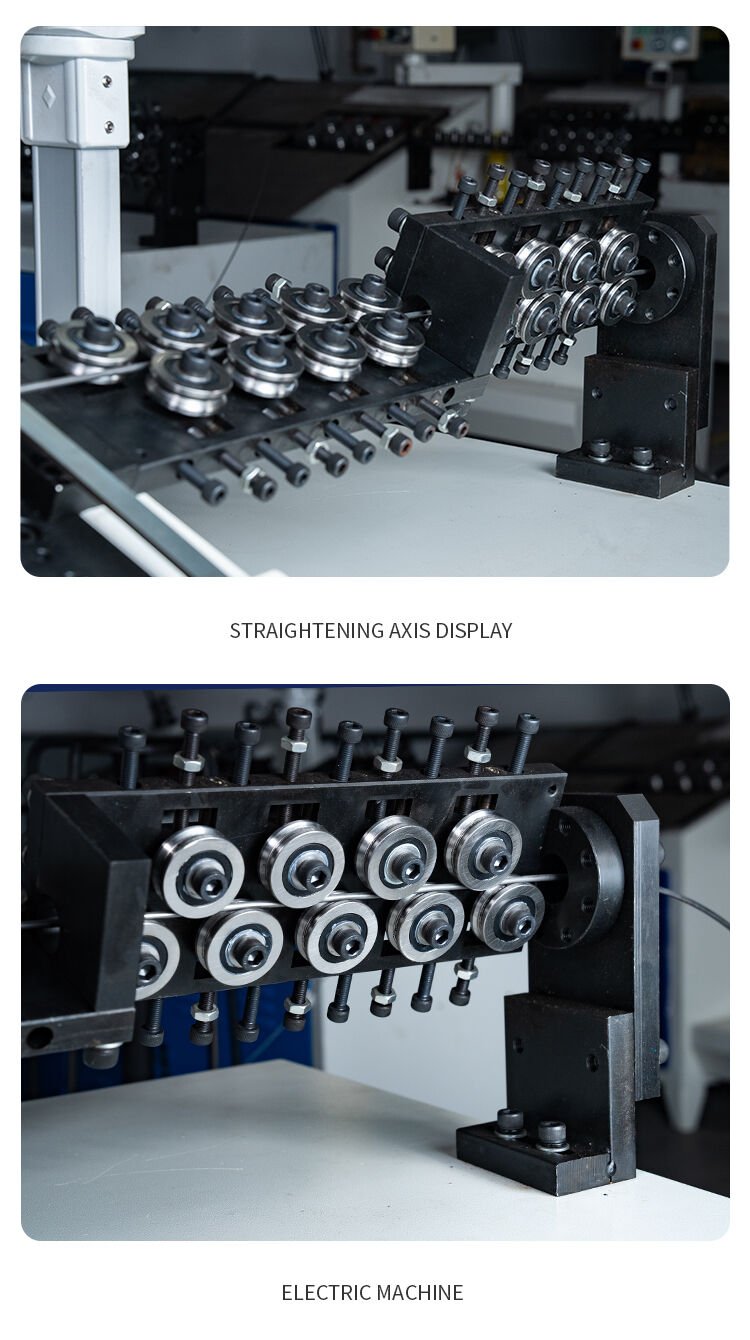

The machine uses straightening wheels, wire feeding rollers, bending cutter, central control computer and servo-driven systems to keep the forming process stable. The selected component images below show key details such as straightening wheels, working head, PLC control panel and real machine structure.
Model selection note: The recommended model depends on wire diameter, material hardness, required shape, production speed and whether chamfering or welding is needed. For special wire materials, testing with samples is recommended before final configuration.
